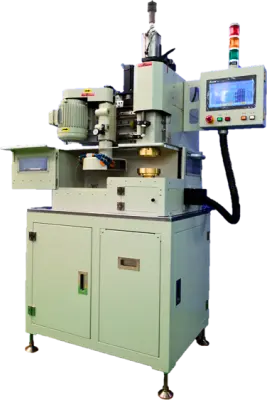

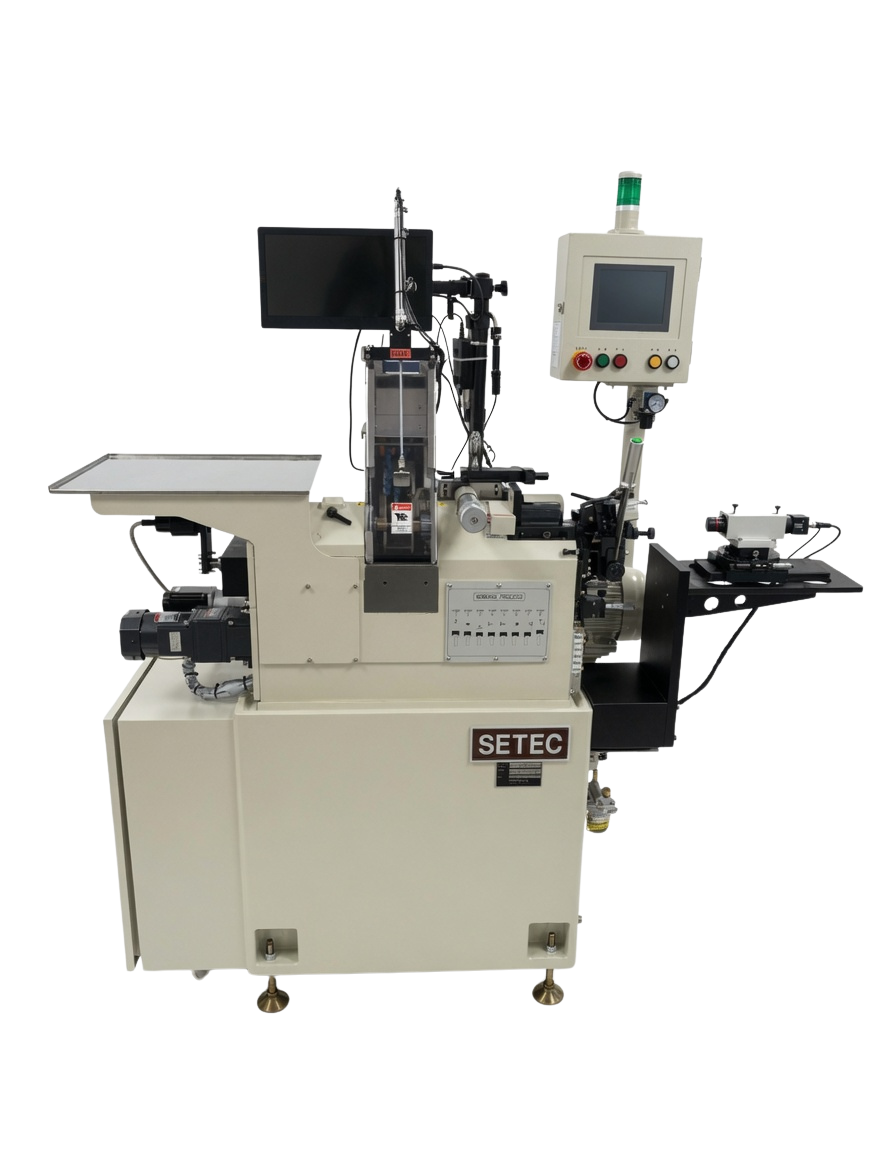

Features

• Φ60 high-rigidity spindle ensures durability and stable dimensional accuracy.
• High-torque grinding spindle delivers superior grinding performance, ideal for medium-to-large diameter lenses, hard materials, and heavy stock removal.
• Grinding wheel angle adjustment mechanism with dial indicator enables fast and precise adjustment according to dimensional requirements.
• 8-step machining process supports rough and finish grinding, improving productivity while maintaining high quality.
• On-machine dressing fixture allows quick changeover between different products, ideal for high-mix, low-volume production.
• Auxiliary lens holding mechanism prevents displacement of thick and heavy lenses during processing.
• Clamping buffer mechanism protects special-shaped and soft-material lenses from surface defects.
• Optional through-type eccentricity measuring system improves concentric lens machining and ensures stable eccentricity yield.
• Maximum machining diameter: Ø120 mm.

    *Contact our customer service for complete specs and brochures. A dedicated specialist will provide the details.

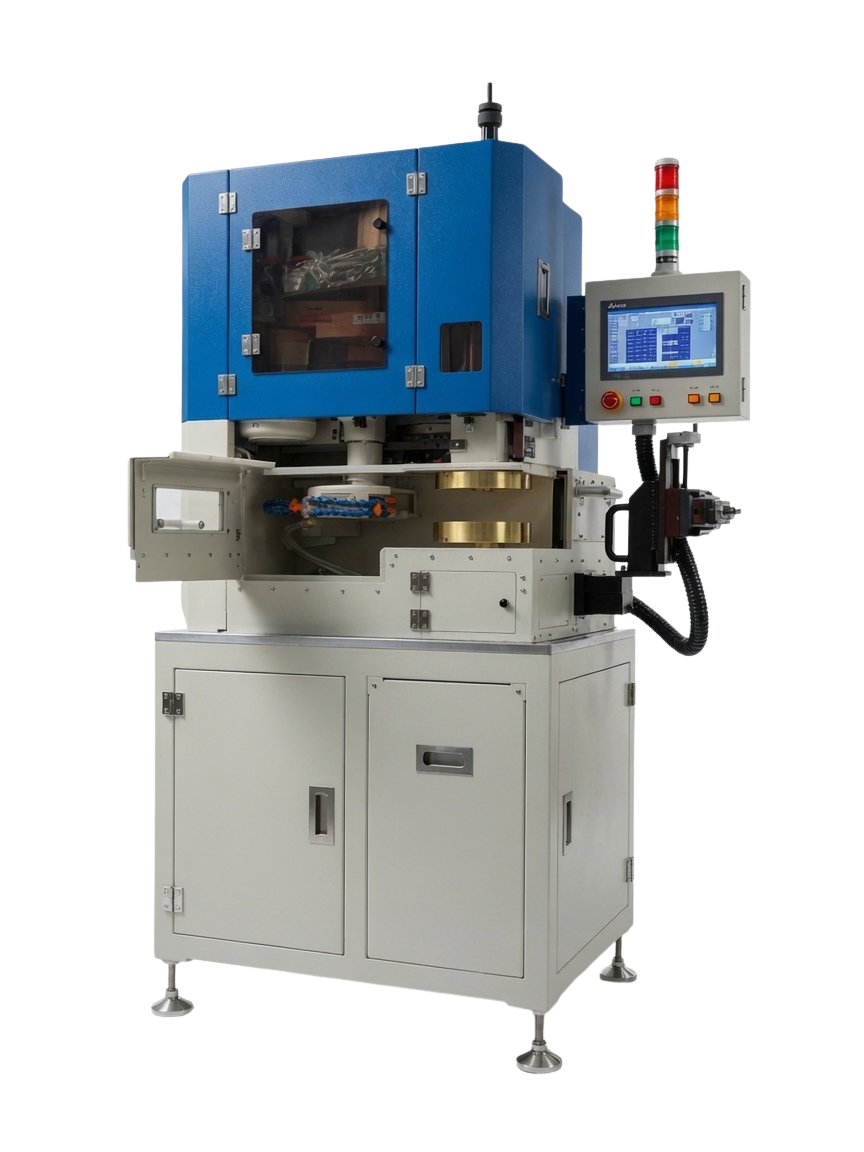

Features

• Max. Machining OD: Φ300
• Vertical Machining: Fully open workspace for easy operation, preventing lens damage.
• Φ65 High-Rigidity Spindle: Ensures maximum stability.
• Precision Clamping Control: Pressure adjustable down to zero, preventing workpiece damage and extending fixture life.
• Grinding Wheel Tilt Adjustment: Adjusts to the target angle or returns to the origin within 1 minute.
• Auto-Calculated Machining Parameters: Easy to learn, reducing training costs.
• On-Machine Dressing: Fast process that minimizes the risk of mandrel damage.

      *Contact our customer service for complete specs and brochures. A dedicated specialist will provide the details.

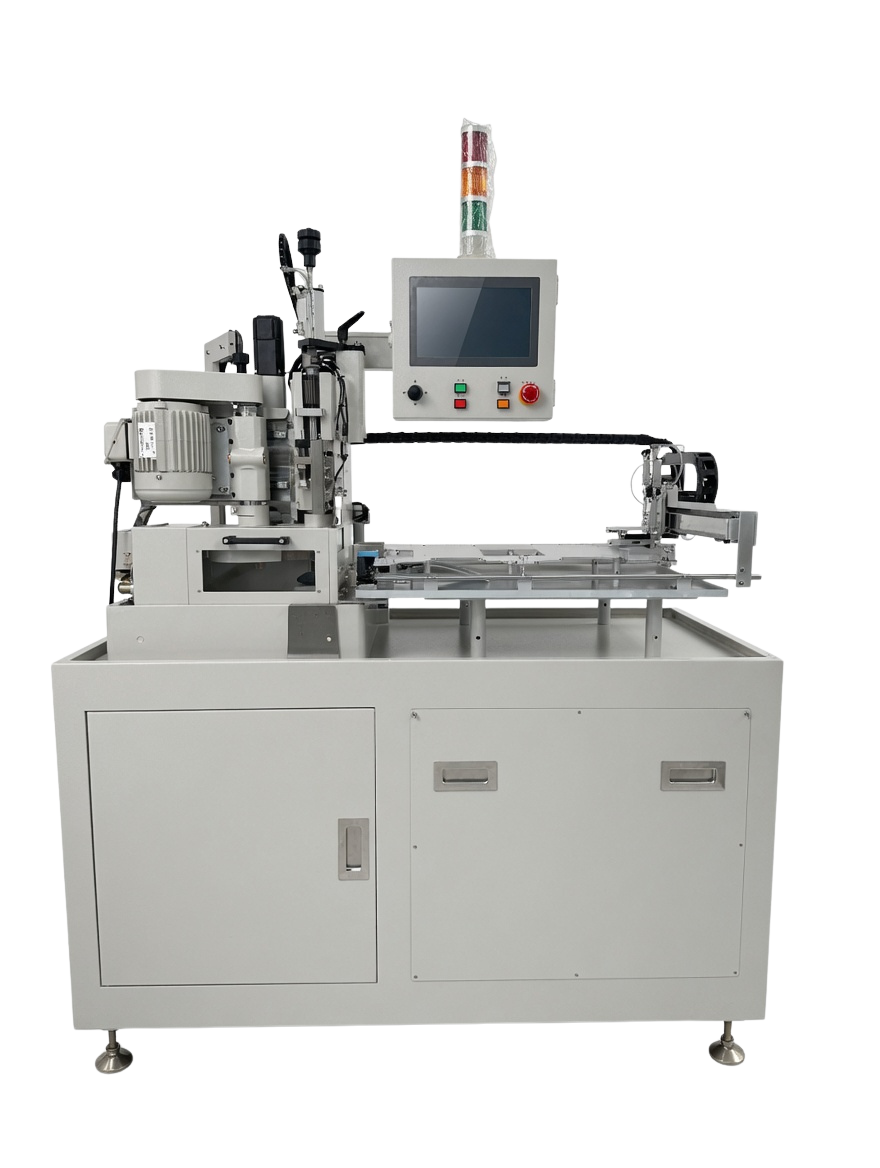

Features

• High-efficiency design with vacuum energy saving, automatic parameter calculation, and jog-dial setup for simplified operation and improved productivity
• 30% productivity increase (compared to cam-type machines)
• Upgraded tray space, improving machine utilization by 10%
• Precision clamping system reduces chipping and eccentricity issues
• fixture maintenance required every 30 days
• Command-based parameter setting allows flexible process programming for different lens characteristics
• Compatible with Ø125 grinding wheels, dual-grit wheels, and dual-platform wheels for various special applications
• Upgraded precision spindle for improved stability and reduced vibration
• Supports water-based core drilling fluid, reducing coating contamination and white spot issues on the platform
• Capable of processing polygonal lenses

      *Contact our customer service for complete specs and brochures. A dedicated specialist will provide the details.

Features

• National patent: Dynamic measurement technology
• Measurement time: 1 second
• Accuracy: ±1 μm
• Quick changeover: measurement switching within 1 minute
• Measures center thickness of both unprocessed and coated lenses
• Supports sag height and custom dimensional measurements
• Measures total thickness of laminated lenses
• Built-in data storage for traceability and quality control
• Automation-ready with dedicated interface for system integration
• Optional auto-positioning system; compatible with Ø3–30 mm fixtures
• Suitable for small-diameter lenses and pre-core drilling inspection

     *Contact our customer service for complete specs and brochures. A dedicated specialist will provide the details.

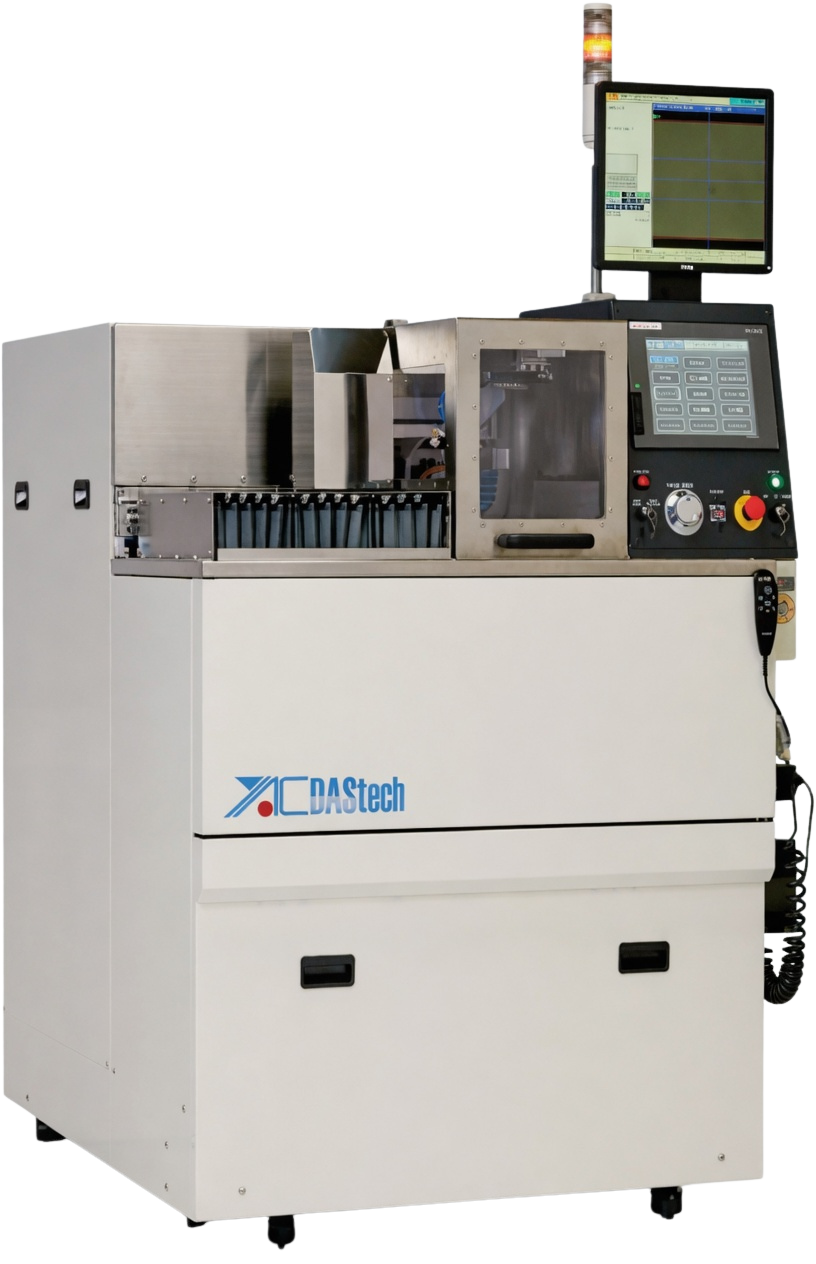

Features

• Suitable for cutting optical glass, ceramics, PCB boards, multi-angle processing, and grinding applications
• Maximum processing size: 200 mm × 200 mm
• High-precision cutting for optical glass materials up to 30 mm thick
• High cutting efficiency
• Straight-line cutting tolerance: < 0.01 mm / 200 mm
• Rotating worktable enables multi-side cutting without unloading the workpiece
• CCD automatic alignment reduces setup time and improves cutting accuracy
• Online blade dressing function
• Enhanced safety protection for operators, equipment, and cutting tools

      *Contact our customer service for complete specs and brochures. A dedicated specialist will provide the details.

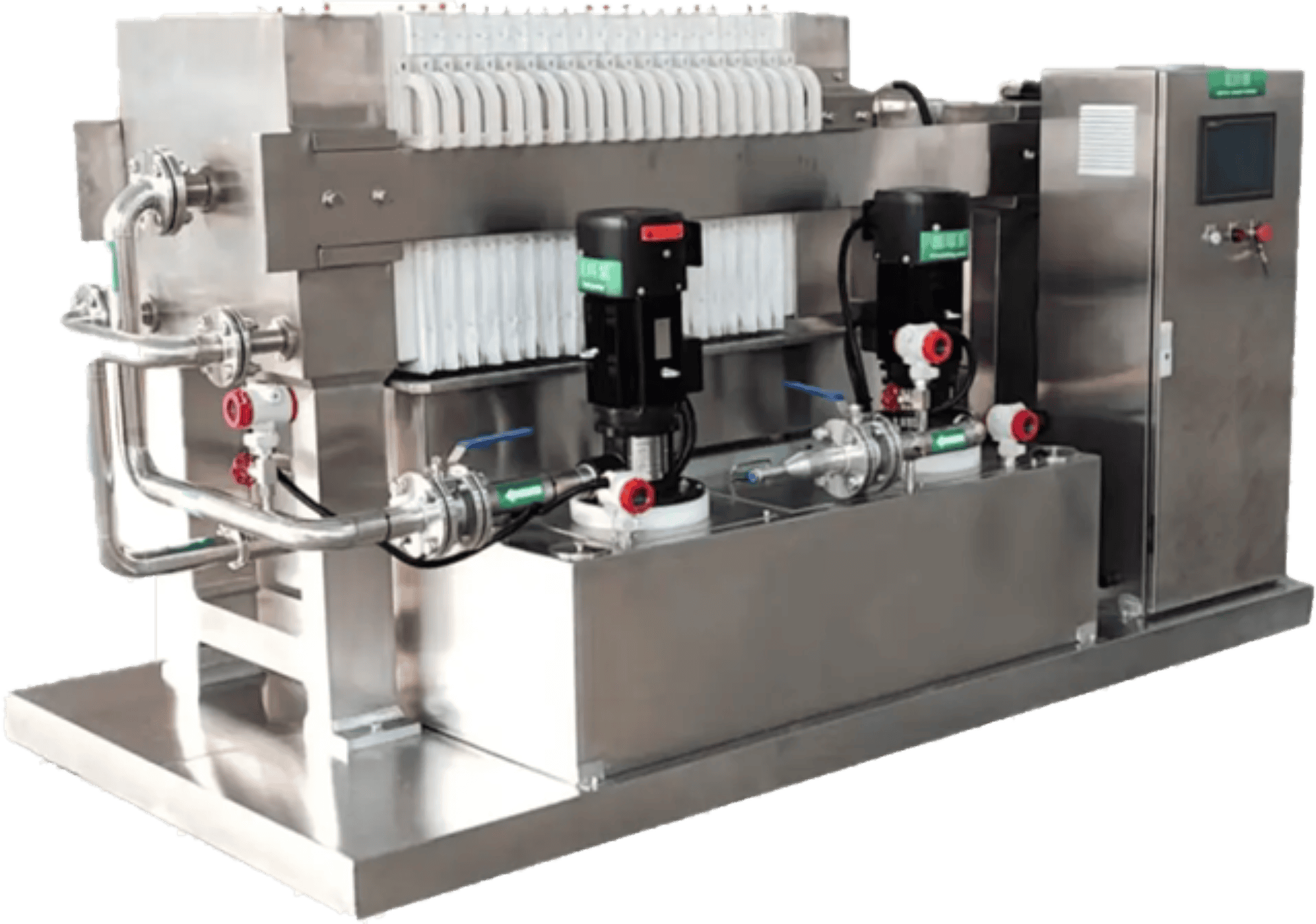

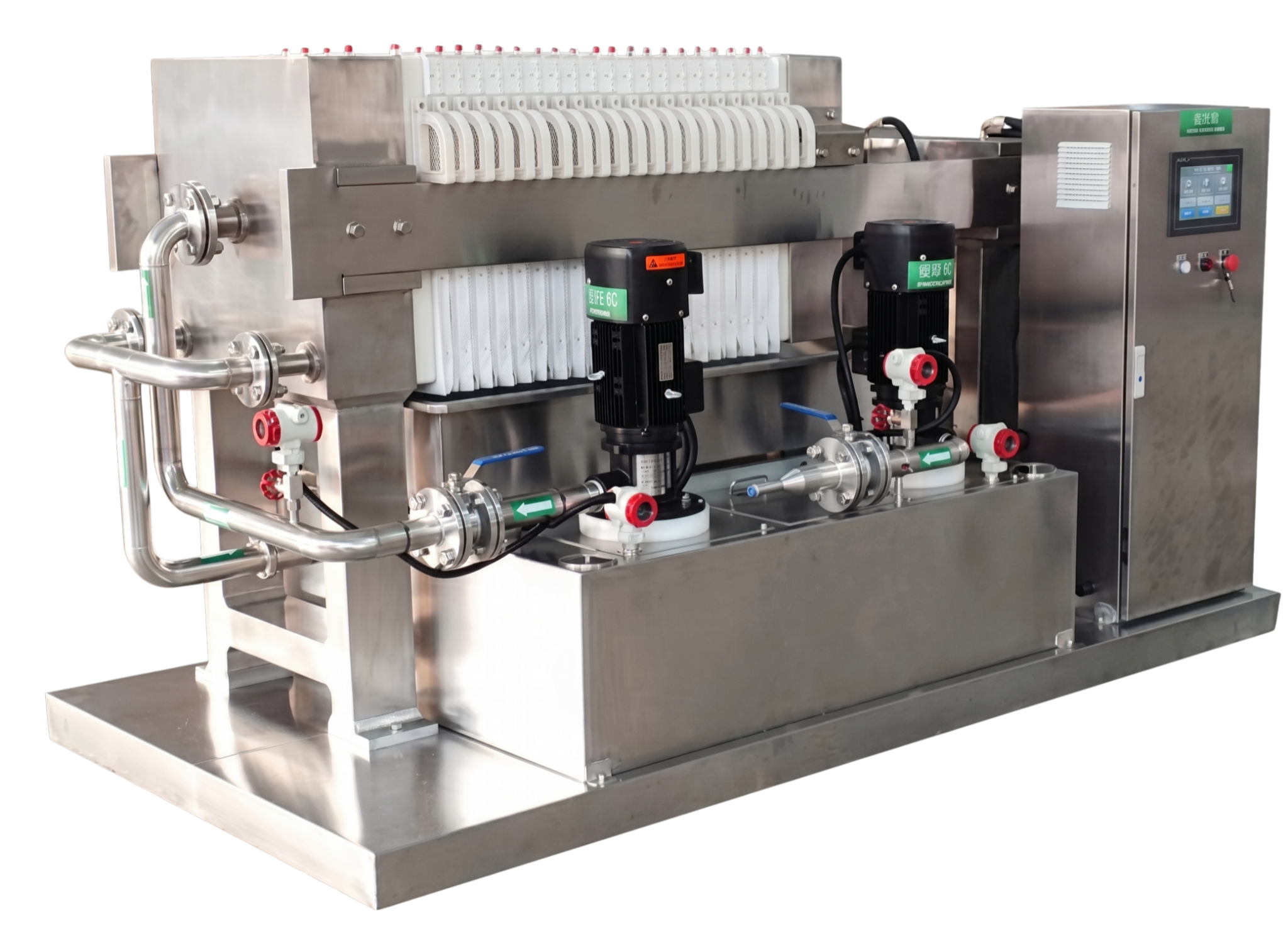

The filter press is an integrated filtration system that combines a slurry tank, filtration unit, piping, pumps, valves, and PLC control. It features high filtration accuracy, simple operation, stable performance, compact footprint, and easy maintenance, making it widely used in the optical lens processing industry.

• High filtration precision with clear filtrate output
• Automatic control system ensures stable circulation pressure and helps improve product quality
• Fully enclosed flow-path design prevents liquid leakage and keeps the working environment clean
• PLC alarm system enables fast and effective troubleshooting
• Electrical components from internationally recognized brands such as ABB, Siemens, and Schneider ensure reliable and stable operation
• Stable performance and dependable quality, with customization available according to specific processing requirements

       *Contact our customer service for complete specs and brochures. A dedicated specialist will provide the details.
